Mini Submarine

Design For A Diving Vehicle.

A device for explorations of the underwater world during recreational diving trips.

The design based on an idea sketch provided by the customer, which was developed through several stages into a mature design, together.

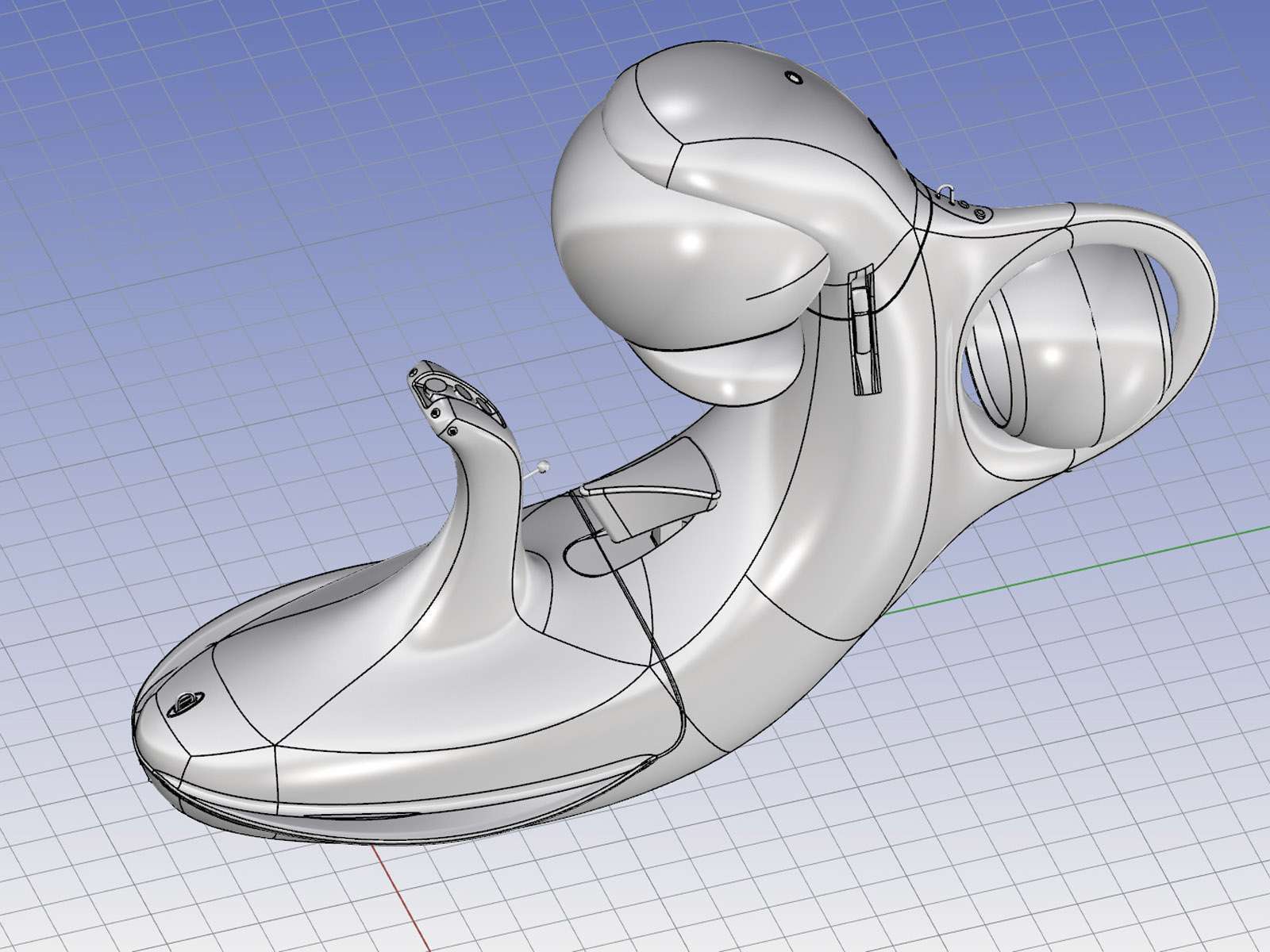

The main emphasis of the project lay on sophisticated CAD surface modeling of the special organic shape the client aimed at.
The CAD file of the surface model in it’s final state, was handed over to an engineering firm, for development of the mechanical design.

See a video of the vehicle in use: https://www.youtube.com/watch?v=XFt-GuzWDgs

Client: Cool Divers S.L.U.
